8K IP Camera Tester with PoE - 7" Touchscreen CCTV Tester for 8MP TVI/CVI/AHD/CVBS Cameras | RJ45 Network Cable Tester | WiFi, HDMI, VGA I/O Tools (IPC-9800ADH Pro) - Perfect for Security System Installation & Maintenance

WANLUTECH CCTV Tester 9800 Pro series IPC-9800CLMOVTADHS Pro Add to Cart IPC-9800CADH Pro Add to Cart IPC-9800ADHS Pro Add to Cart IPC-9800ADH Pro Add to Cart Customer Reviews 4.0 out of 5 stars 19 4.0 out of 5 stars 19 5.0 out of 5 stars 1 5.0 out of 5 stars 1 Price $649.99$649.99 $395.99$395.99 $399.99$399.99 $370.99$370.99 IP and Analog Camera Test ✔ ✔ ✔ ✔ 8MP TVI/CVI/AHD Camera Test ✔ ✔ ✔ ✔ 8MP SDI Camera Test ✔ N/A ✔ N/A Cable tracer ✔ ✔ N/A N/A Video level meter ✔ N/A N/A N/A Digital multimeter ✔ N/A N/A N/A Optical power meter ✔ N/A N/A N/A Visual fault locator ✔ N/A N/A N/A TDR cable breakpoint test ✔ N/A N/A N/A HDMI in/HDMI out/VGA in ✔ ✔ ✔ ✔ RJ45 Cable Tester ✔ ✔ ✔ ✔ WI-FI Analyzer & Network Tools ✔ ✔ ✔ ✔ Max 8K 32MP IP camera test 8K 32MP 8160x3616P video display via mainstream. IP Discovery/Quick OVIF/IPC test /RTSP play /Client APK. Rapid Video,auto view the video, create testing report. HIK/DH camera test tool, support modify HIK/DH camera's user name, password, IP parameters,etc. CVBS 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt). PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as for PELCO-D/P, for Samsung, for Panasonic etc. CVBS loop test, the tester send and receive color bar generator signal , check BNC cable. HD coaxial test ( Only TVI 5.0 support coaxial audio test) 8MP TVI/CVI/AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu. Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu. Support color bar generator, output one channel PAL/NTSC color bar video signal for testing monitor or video cable. HDMI in/out & VGA input HDMI input, support 4K 30fps. HDMI output, support 4K 60fps. VGA input, support 1920x1080P 60fps. PoE/Power input/output Support PoE power output, DC48V, max power 25.5W. DC12V 2A power input. Support DC5V/2A power output, as a power bank. DC12V/3A power output ,supply temporarily power for the camera. DC24V/2A power output ,supply temporarily power for dome camera. Power management Support to check the real-time voltage, power, status of Power output and power input port. Cable test RJ45 Cable TDR Test: it can test cable pair status, length, attenuation, reflectivity, impedance, skew. UTP Cable Tester: test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. Cable Length(3KM) Test Data monitor Captures and analyzes the command data from controlling device, also can send hexadecimal. Battery/Screen/CPU RAM EMMC Built-in 7.6V Lithium polymer battery,7800mAh, 59.28Wh. 7 inches IPS touch screen, 1280*800 resolution. 2.0GHz 4-core CPU, 1GB RAM, 8GB FLASH(EMMC) WIFI analyzer/WIFI hotspot WI-FI analyzer(2.4GHz frequency band) support to analyse wi-fi signal strength,channel,channel level, support create WI-FI hotspot. Audio test 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone Network Test Tools Built-in porfessional network testing tools,such as Ping, IP scan, DHCP server, PPPOE, Trace Route, Port Flash, LLDP, Link Monitor, etc. TesterPlay Screen projection: tester, mobile phone and PC display at the same time (only for android version mobile phone) Multiple Preview Multi-preview APP supports synchronized preview of multiple cameras, playback of the camera 2 to 3 frames per second, up to 16 simultaneous preview. Operation language OSD menu language: English, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish Portuguese, Czech etc. Common tools Built-in flashlight, calculator, audio recorder, audio player, vedio player,and other common tools. Previous page Next page 1 AHD CVI TVI Test 2 Max 8K IP Camera Tester 3 IP Discovery / ONVF 4 HIK / DH Camera Test Tool 5 Color Bar Generator Previous page Next page 1 UTP Cable Tester 2 RJ45 Cable TDR Test 3 Cable Length Test 4 HDMI in/out & VGA in 5 WIFI Analyzer/FTP Serve Previous page Next page 1 PoE Power Output 2 Power Management 3 Network Testing Tools 4 TesterPlay Previous page Next page 1 CPU RAM EMMC/7'' Screen 2 App Update/Wifi Hotspot 3 Multiple Preview Mode 4 Packing List

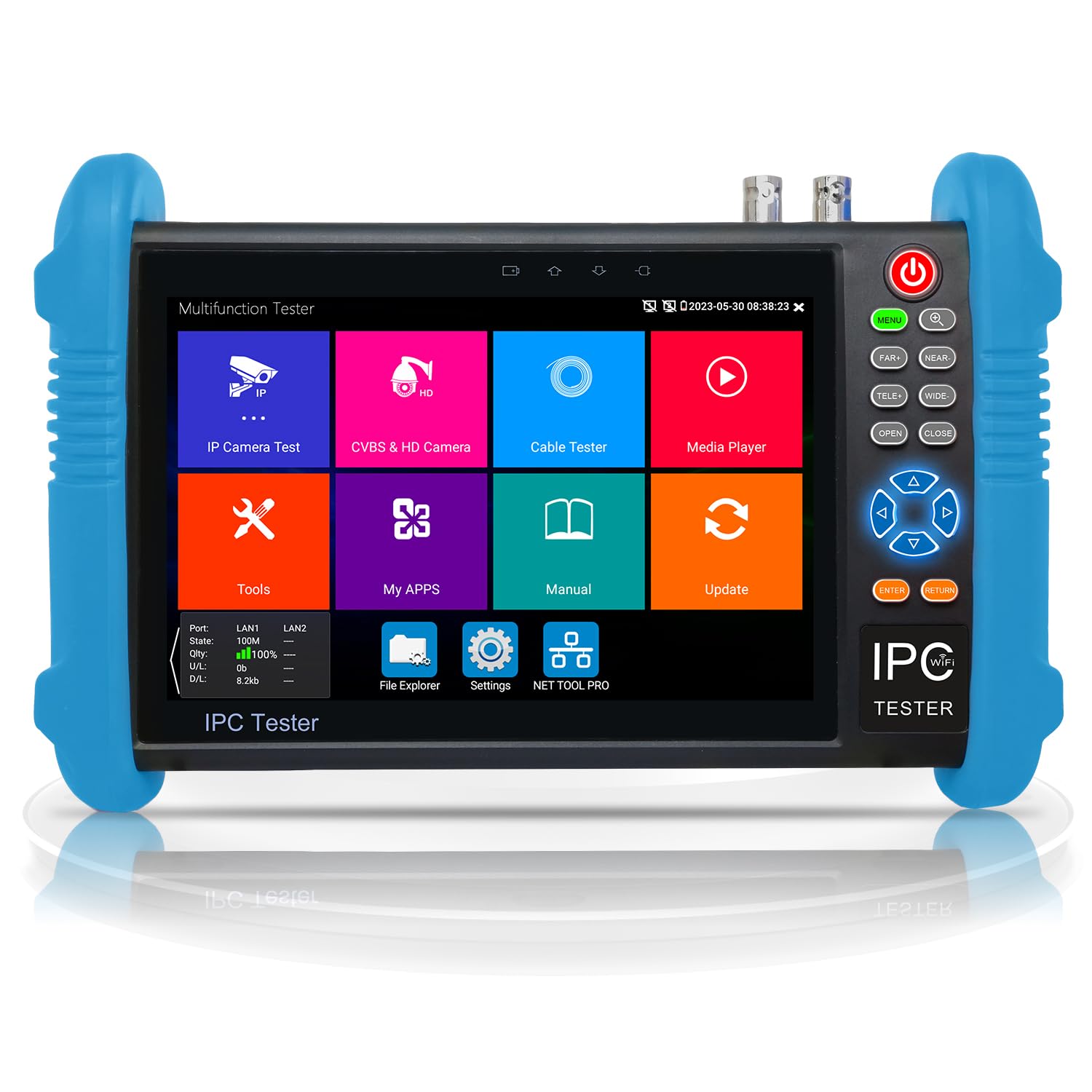

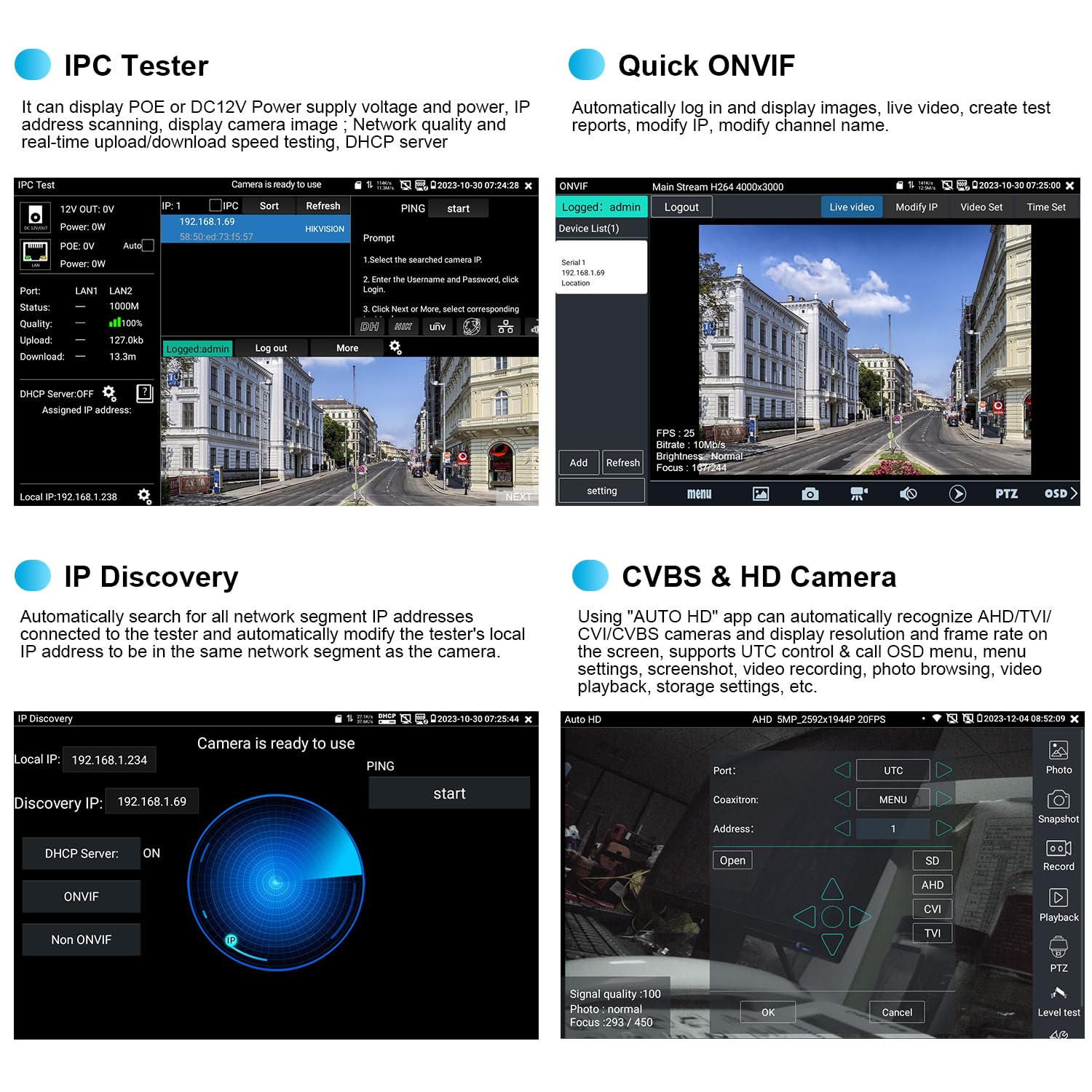

[ Upgraded IP Analog Camera Tester ] WANLUTECH 8K IP camera tester has 7'' touchscreen, 1280x800 resolution. It support to test max 8K 32MP 4K 12MP IP cameras, support CVBS analog camera test. The IP camera tester supports batch activation of DH, Hik cameras and modification of IP addresses, passwords, etc. Support IPC Test /IP Discovery/Rapid Video/RTSP Play /Quick OVIF/Hik DH test tool/Client APK. Support 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt). Support CVBS loop test, the tester send and receive color bar generator signal, check BNC cable

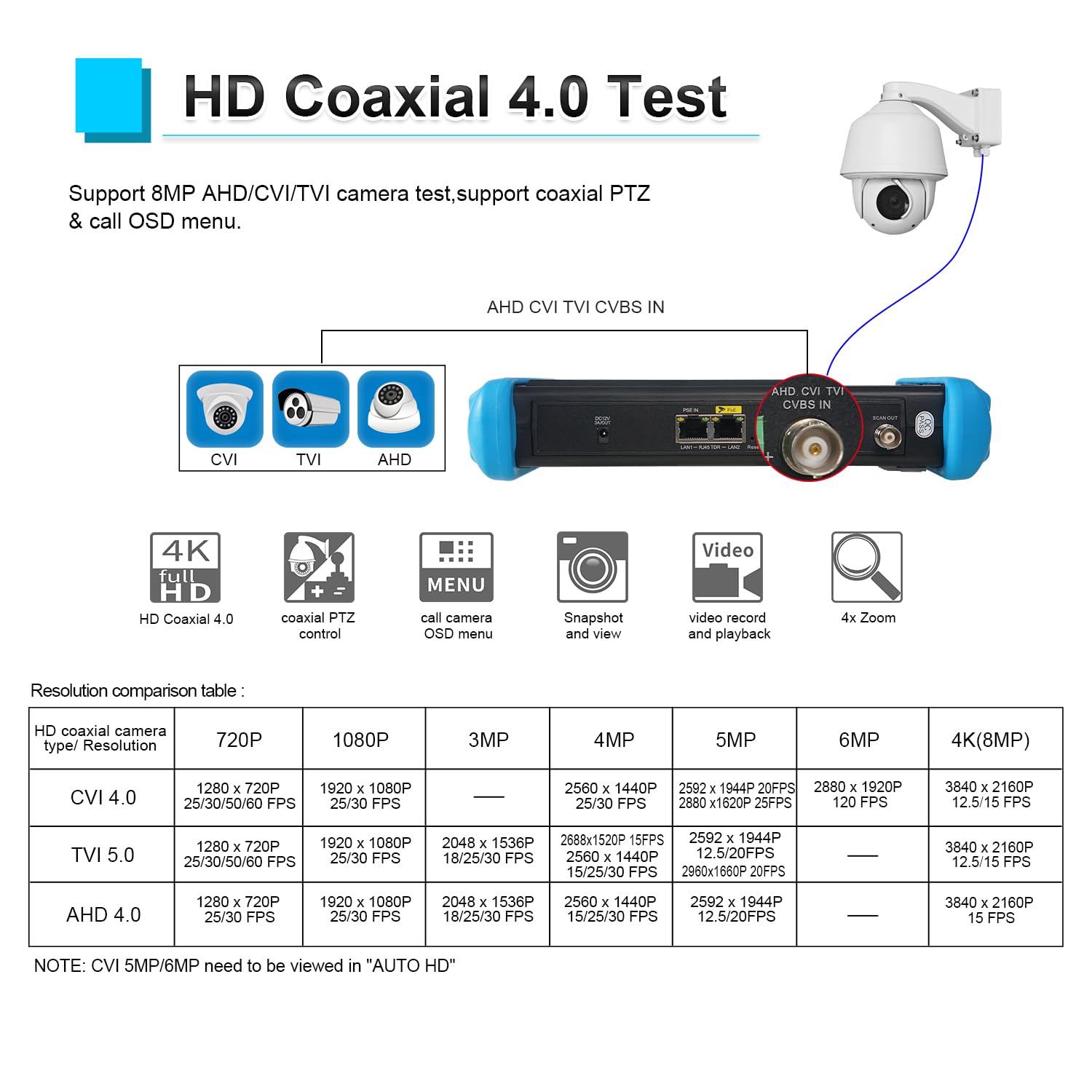

[ AHD TVI CVI Camera Tester ] WANLUTECH IP camera tester with poe support to test max 8MP AHD/TVI/CVI/CVBS camera. Using "AUTO HD" app can automatically recognize AHD CVI TVI CVBS cameras and display resolution and frame rate on the screen, supports UTC control & call OSD menu, menu settings, screenshot, video recording, video playback, etc. Support color bar generator, output one channel PAL/NTSC color bar video signal

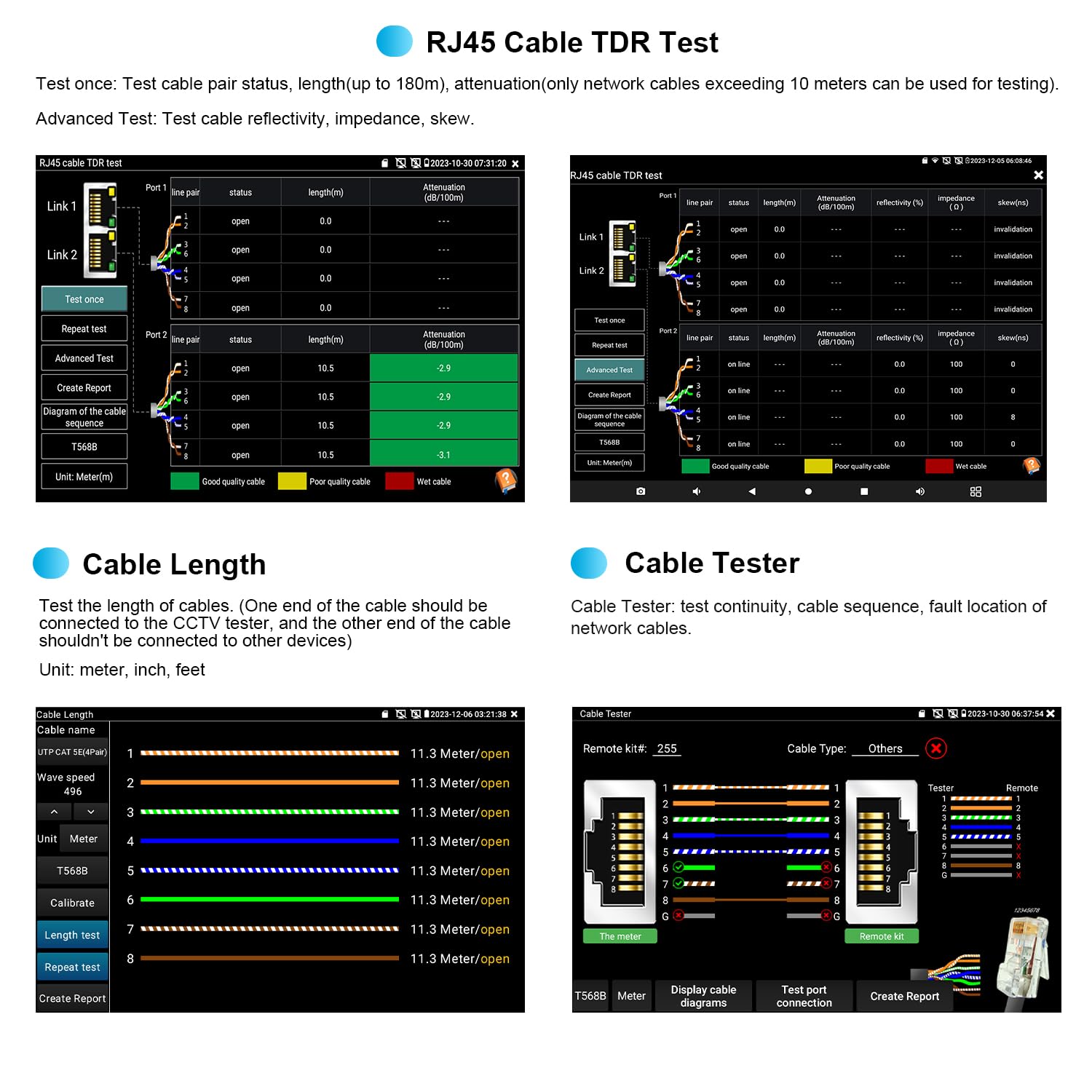

[ Cable Tester ] RJ45 Cable TDR Test it can test cable pair status, length, attenuation, reflectivity, impedance, skew. UTP Cable Tester test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. Cable Length Test Measure the breakpoint position of (open circuit status) BNC cables, RJ45 network cables, RJ11 cables

[ PoE & Network Test Tools & WIFI ] IP Camera Tester with PoE, support PoE IEEE802.3af/at , max 48V, power output 30W. Network Test Tools built-in porfessional network testing tools,such as Ping, IP scan, DHCP server, PPPOE, Trace Route, Port Flash, LLDP, Link Monitor, etc. WI-FI analyzer(2.4GHz frequency band) support to analyse wi-fi signal strength,channel,channel level, support create WI-FI hotspot

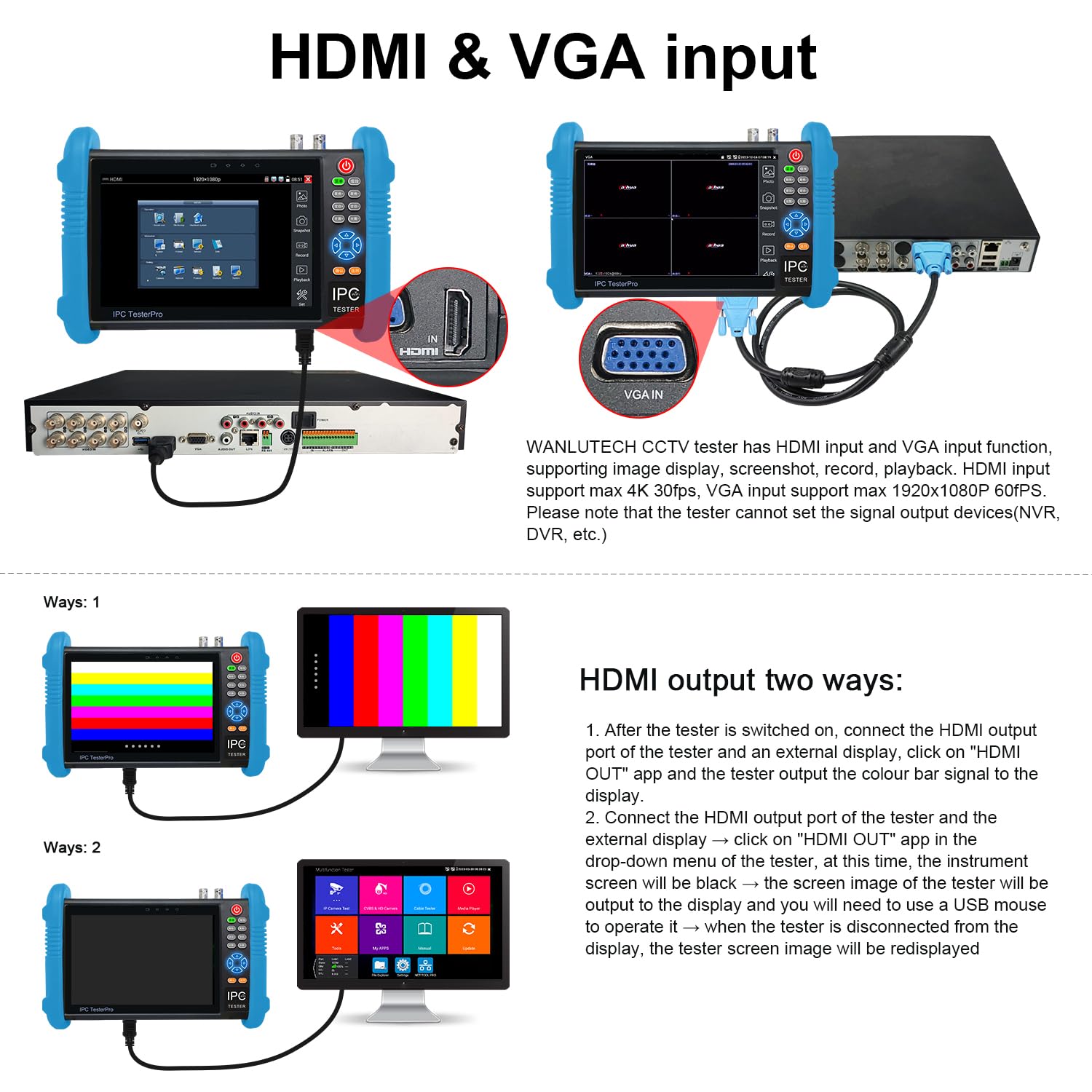

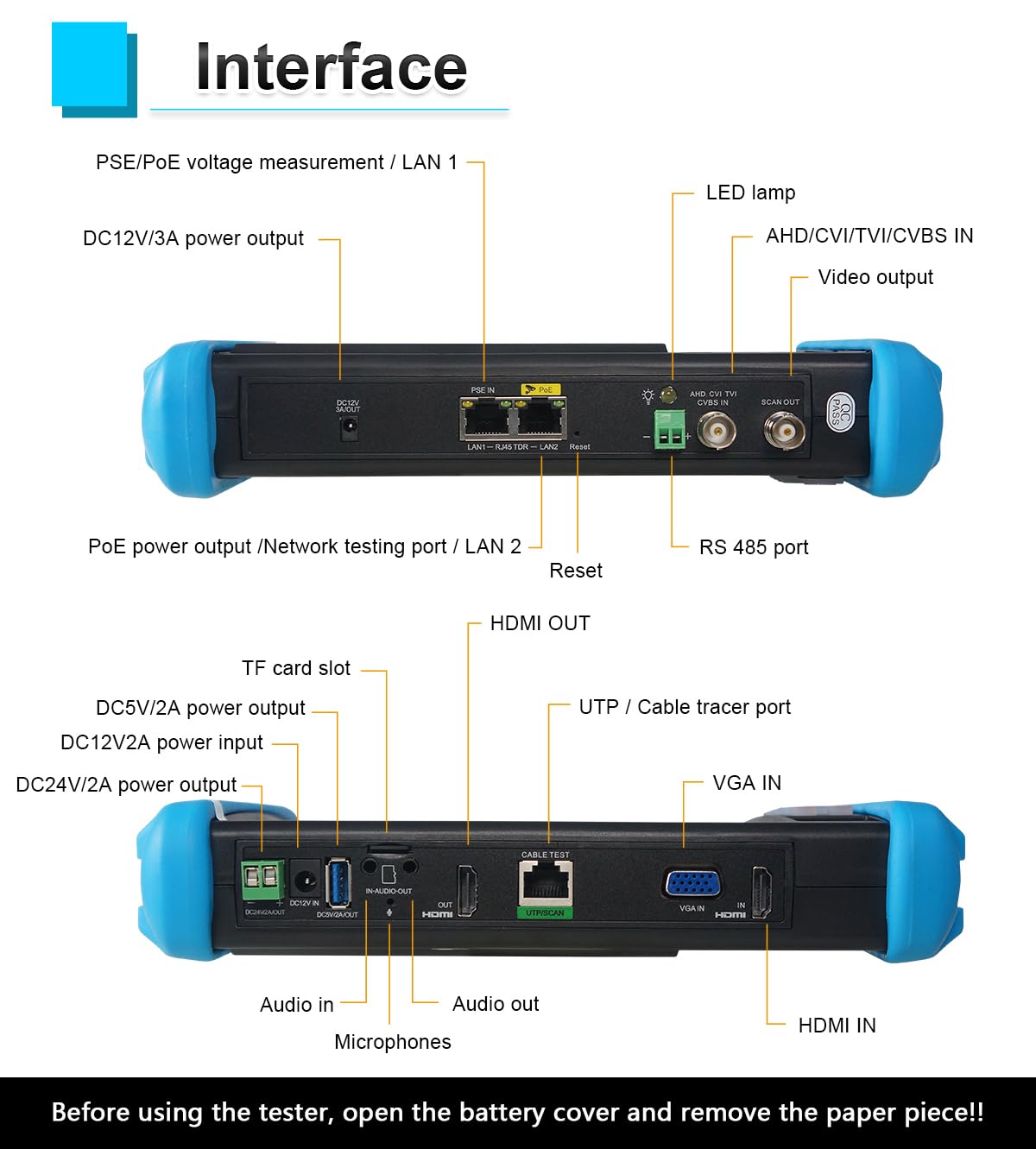

[ Multifunction CCTV Camera Tester ] Power Management support to check the real-time voltage, power, status of Power output and power input port. Drop-down menu, Media player, including 8GB TF card, Dual Gigabit Ethernet Ports, HDMI in/out, VGA in, Audio in/out, RS485 port. Power inputDC12V 2A. Power outputDC12V/3A, DC24V/2A, DC5V/2A

[ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
