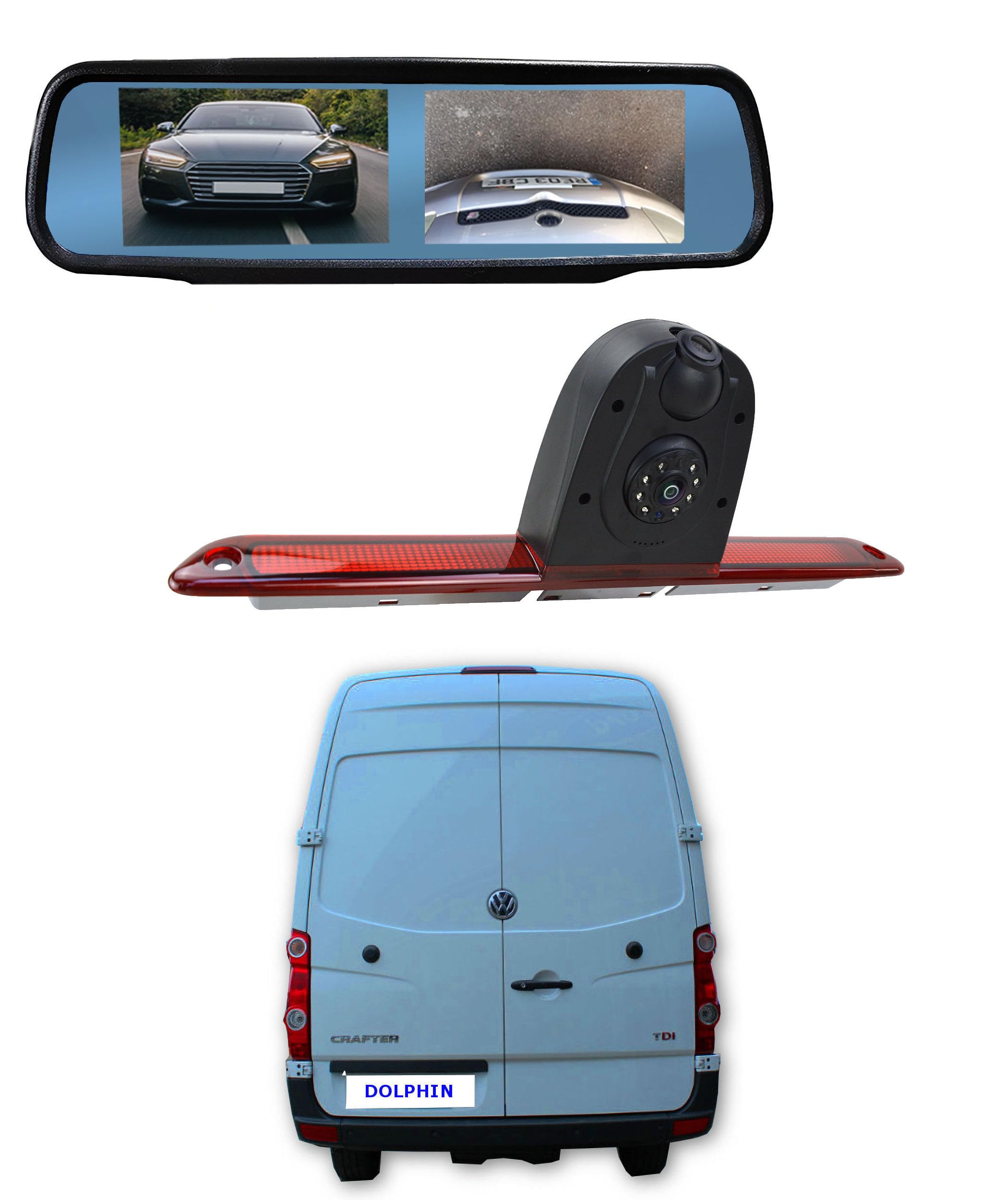

Dolphin Automotive Dual Rear View Parking Camera with 4.3" Monitor - Backup & Reversing Brake Light System for Mercedes Sprinter Van 2007-Present | Perfect for Safe Parking & Night Driving

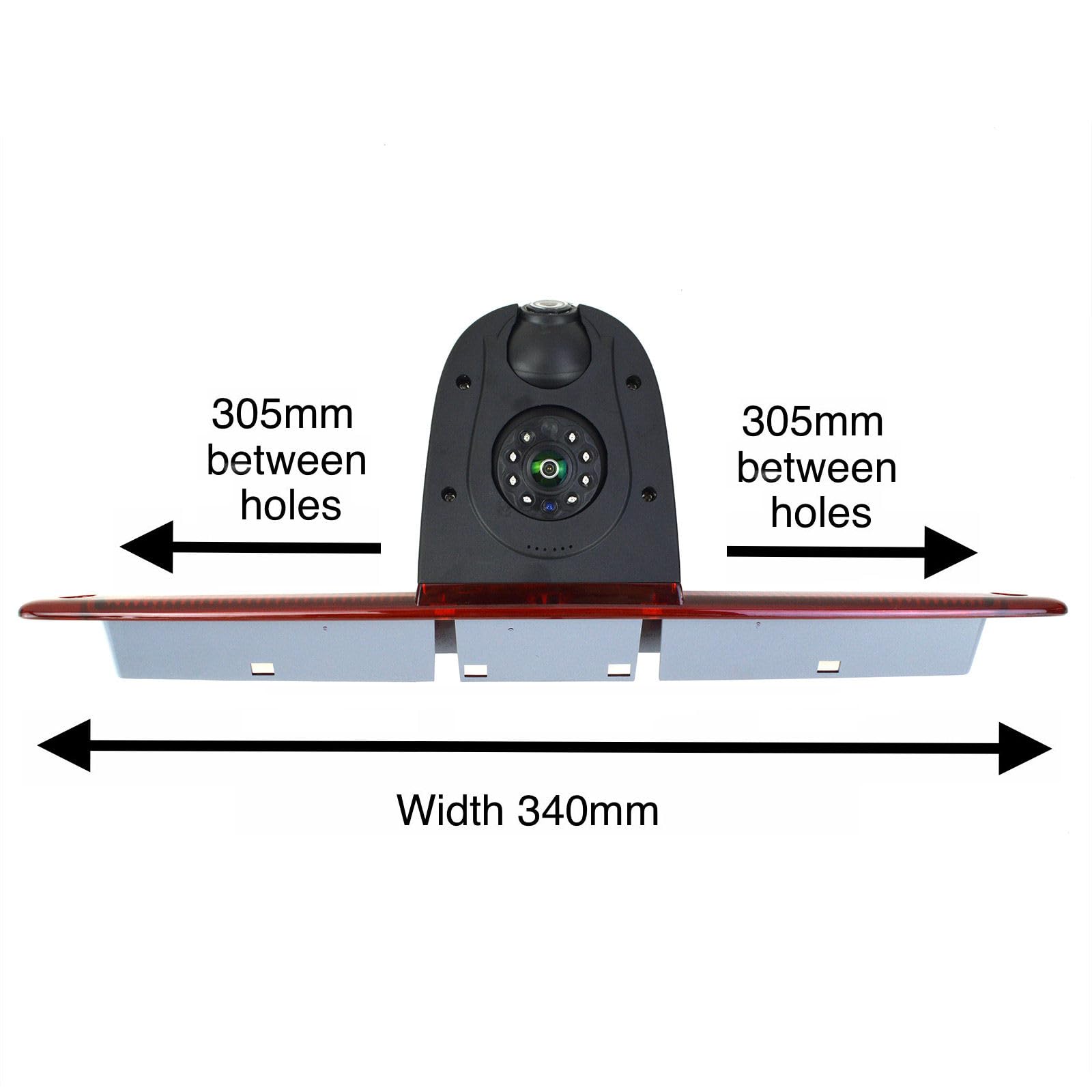

Looks Factory Fitted Our Dolphin Automotive range of van reversing cameras are designed to fit so well they look like original factory fitted equipment. By replacing the housing of the high level brake light you remove the need to drill holes into the metal bodywork of the van which can often lead to issues with corrosion further down the line. It also helps keep the streamline design of the vehicle so you do not have an object sticking up above the roof that can get caught on things. Designed specifically for the 2nd generation (906 NCV3) Mercedes Benz Sprinter from 2007 to 2018 and also fitting the 3rd generation from 2019 onwards (907/910 VS30) if your van or minibus looks similar to this with a brake light that is 34cm wide and about 3.5cm high, the screw holes are about 30.5cm apart) then its a direct replacement. This also fits the VW Crafter from 2007 to 2017 which used the same chassis. Brake Light Functionality Maintained In all instances our brake light cameras maintain the functionality of your 3rd brake light. This Mercedes Sprinter dual camera here is a replacement lens cover to your brake light so you don't have to worry about any of the workings or wiring of the actual brake light itself as it all remains intact and works just as normal. This leaves you with a professional finish and OEM designed look for your light commercial vehicle, not an aftermarket / afterthought piece of poor retrofit DIY. In Operation If purchasing with one of our monitor options below, then the wiring is design for your rearview camera to be on whilst driving, or at least whilst not in reverse gear. The parking camera facing down comes on instead when you select reverse gear and the monitor automatically switches over to this view. The monitors are too small for a dual / split screen view but if you want to run one of the cameras to a separate second monitor then it is possible to have both wired to be on at the same time. Adjustable Camera Angles As the size and design of the brake light housing allows, we have taken the opportunity to add a small amount of adjustment with a ball-socket for final alignment but as standard all our cameras have been designed to give what we believe is the optimum angle looking down at the rear bumper to make best use of those final few feet when reversing in limited space. You can buy our cameras on their own if you already have a compatible head unit you can plug them into or we offer a range of dashboard mounted and rear view mirror mounted monitors. Please note some modern inbuilt manufacturer supplied head units my not use a standard Phono/RCA input or may need ‘programming’ to switch the reversing camera option to On with the vehicles ECU management system so check this out. Our Range Of Monitors The 4.3 inch dual dash monitor is sat nav sized, sits on an adjustable bracket which comes with a pad to adhere to the dashboard. It can also be turned around so it would be possible to adhere this to the windscreen if you wanted. When powered the screen stays blank until an image signal is received. Ideal for our dual rear camera systems where you can see both views at the same time if you wish to wire them both to an ignition feed rather than one of them to reverse. Our Range Of Monitors The 4.3 inch dual mirror monitor is sat nav sized and is designed to clip over an existing mirror monitor. When powered the screen stays blank until an image signal is received. Ideal for our dual rear camera systems where you can see both views at the same time if you wish to wire them both to an ignition feed rather than one of them to reverse. Our Range Of Monitors The 7 inch dash monitor is certainly the more commercial looking solution giving a larger picture on a bracket that both tilts and swivels so you can locate it as suits your needs. The mounting bracket comes with an adhere pad but iti can also be screwed down to your dashboard. Our Range Of Monitors The 7 inch mirror monitor is again designed to clip over an existing mounted rear view mirror and has a mirrored finish so will work as a rear view mirror until you select reverse gear at which point the screen will come on. 4.3" Dual Dash Monitor 4.3" Dual Mirror Monitor 7" Dash Monitor 7" Mirror Monitor Dolphin Automotive UK Support As a UK Company, established since 1997, we sell a range of automotive products in addition to reversing cameras and in the intervening 25+ years we have won awards for our range of reversing parking sensors in particular. Being in the UK we can offer quick product support both pre and post purchase should you have any questions or issues.

[VAN] This Dual Reversing Camera Fits The Mercedes Sprinter 2nd Generation From 2007 - 2019 And 3rd Generation 2019 Onwards Replacing The Current High Level Brake Light (It Also Fits The VW Crafter From 2007 - 2015). Your High Level 3rd Brake Light Should Be Approx 34cm Wide by 3.5cm High Built Into The Rear Roof Of Your Van, Your Van Will Look The Same As The One In Our Photos.

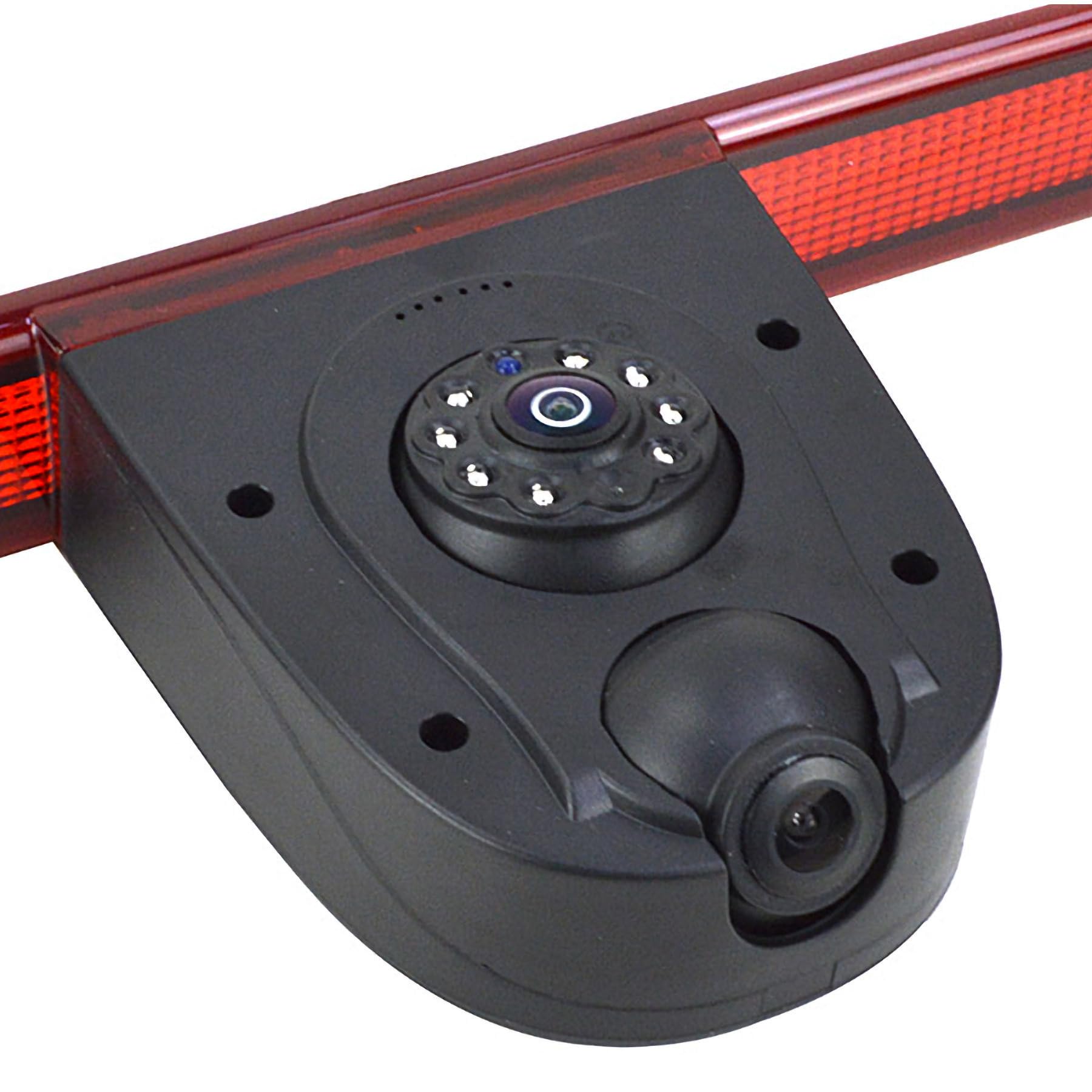

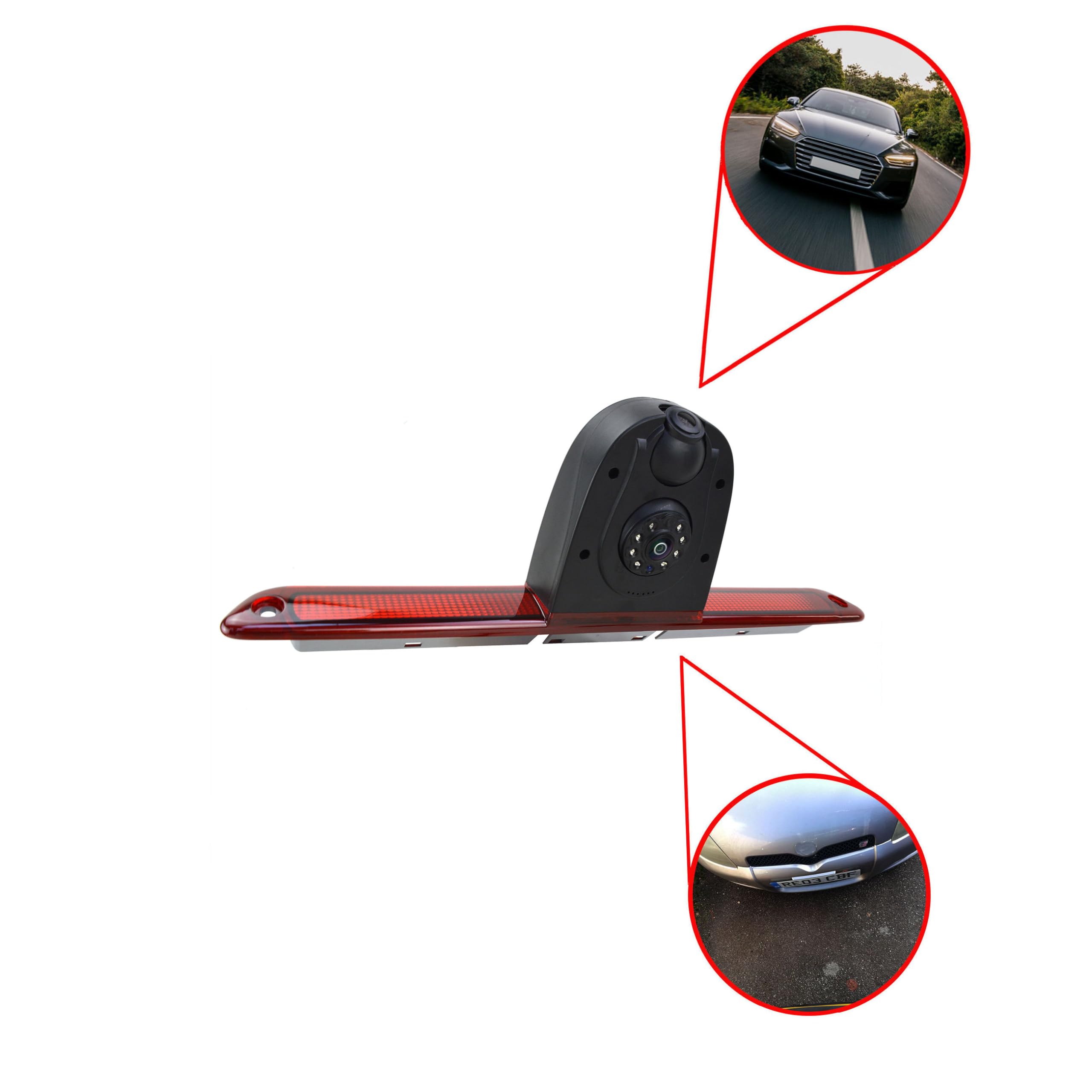

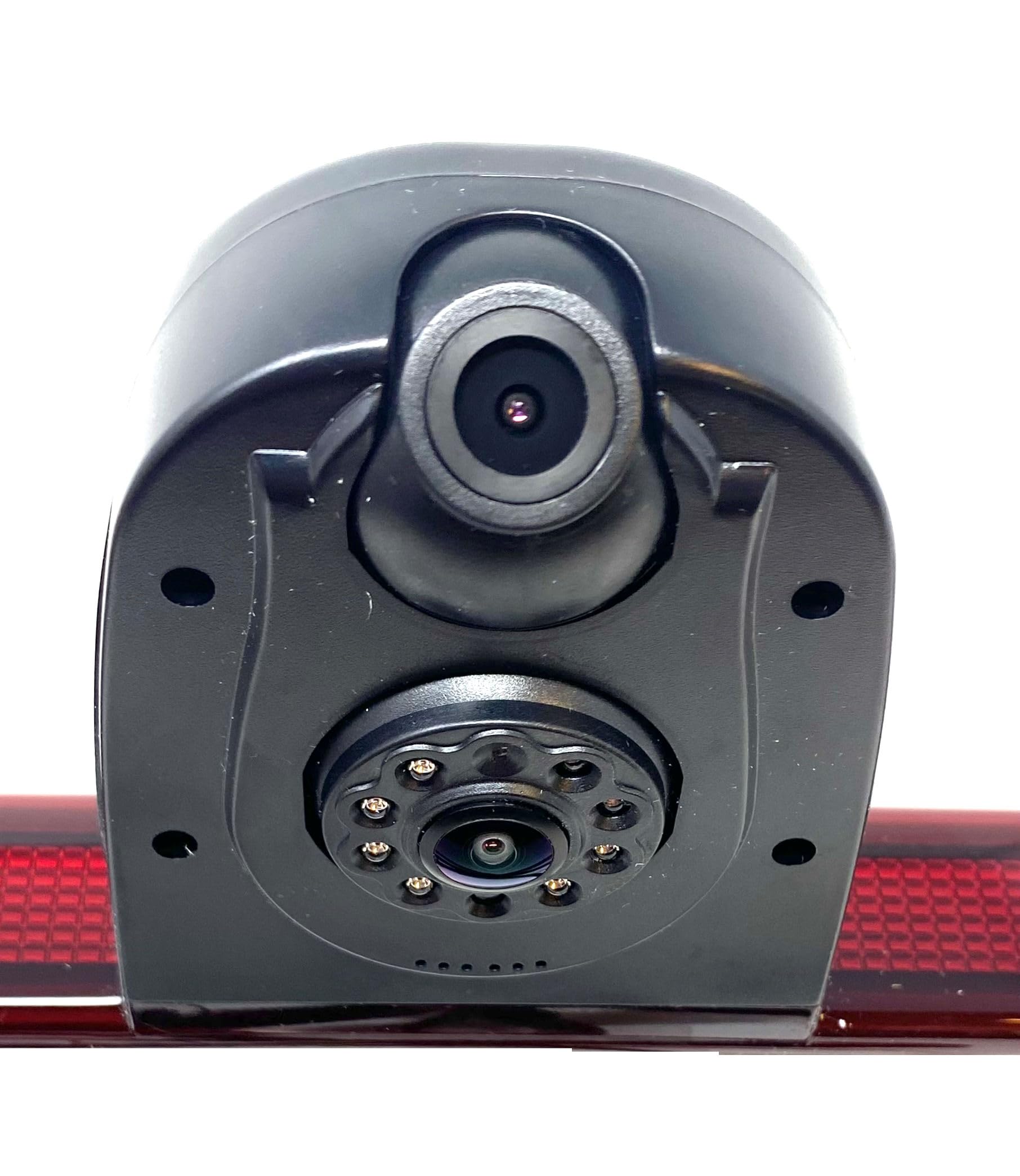

[DESIGN] One Rear Camera Faces Outwards Behind Your Van And The Other Camera Looks Downwards At The Bumper. The Cameras Are Ball & Socket Jointed So Angles Can Be Adjusted As You Require And The Birdseye Camera Has LEDs For Night Vision. This Is A Replacement Brake Light Housing So You Retain And Continue To Use & Maintain Your Current Brake Light Functionality.

[OPERATION] If Used With Our Single Screen Monitors Your Will See The Rear View When Driving & The Monitor Will Switch To The Bumper View When You Select Reverse Gear. With The Dual Monitors You Can Keep The Rear View On Screen & Additionally Get The Bumper View On Reverse Or Wire Both To An Ignition Live For Constant Dual Vision Of Both Camera Angles.

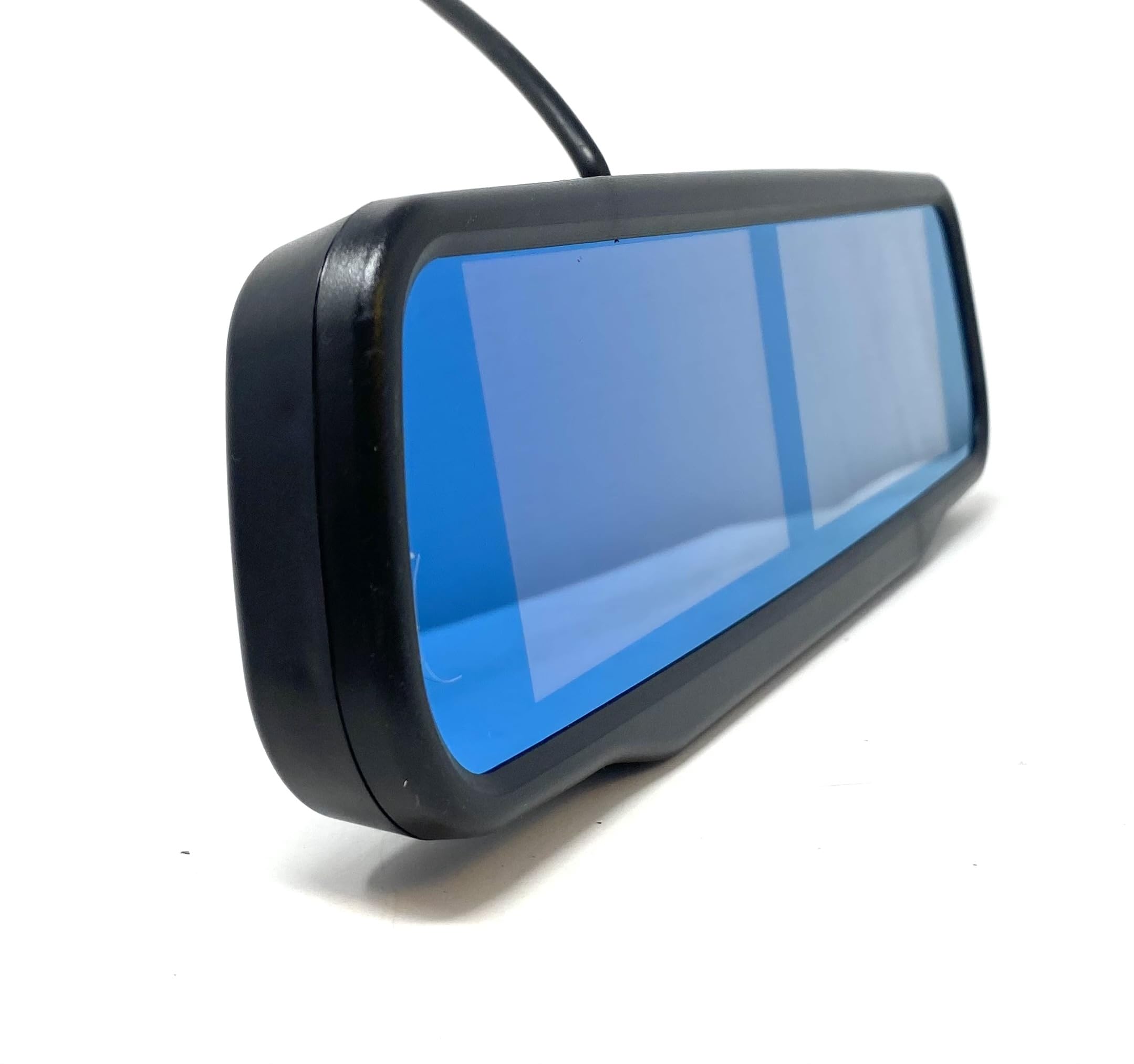

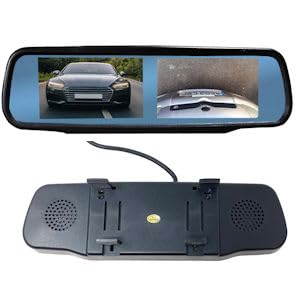

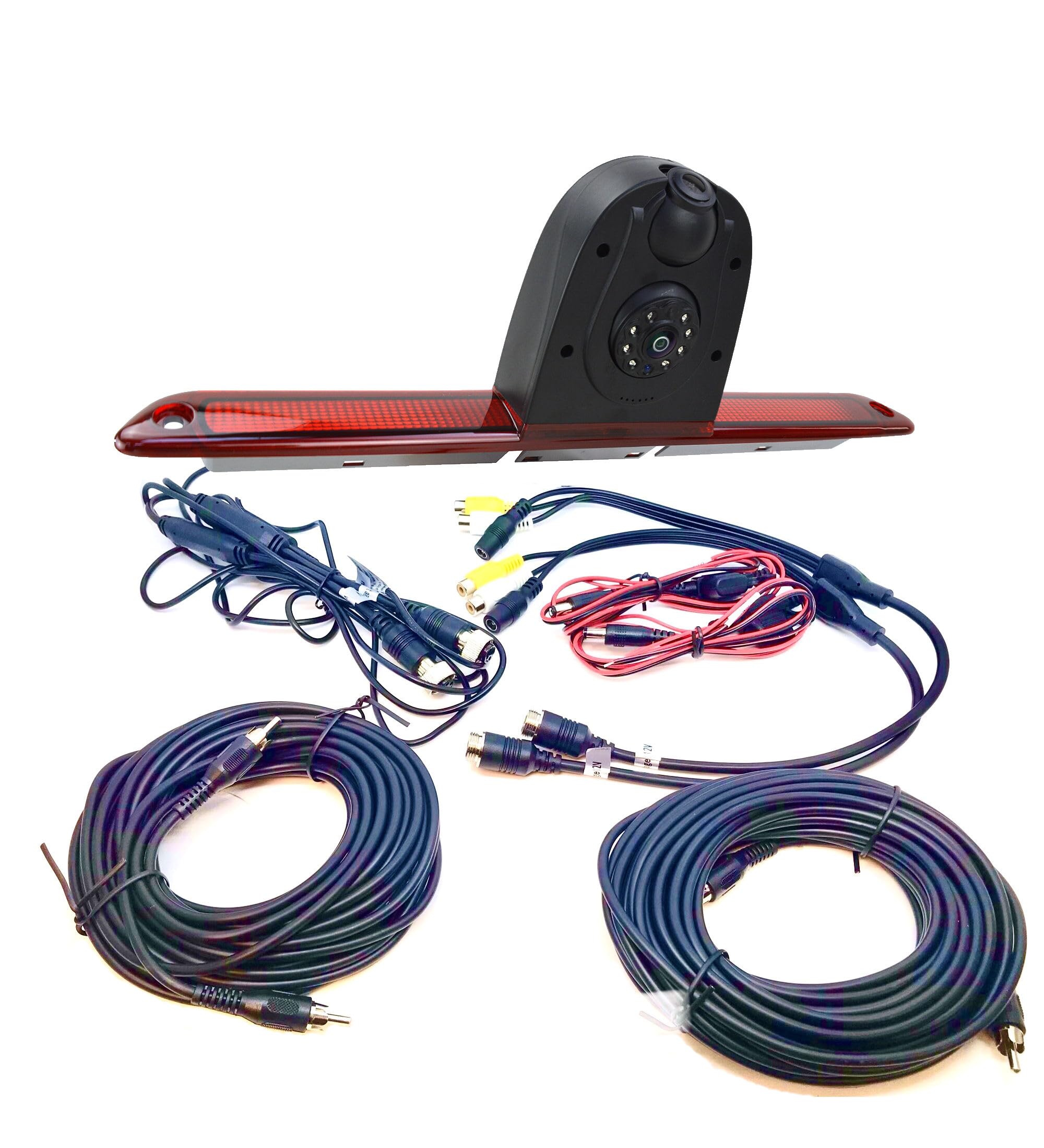

[KIT] In The Kit Are 2 x 10m RCA / Phono Cables, 2 x Power Leads, 2 x Composite Adaptor Cables And A Gasket Seal. The Monitors Come Additionally With Their Own Mounts & Compatible Cabling To Give You A Complete System. You Will Need A Rearview Mirror To Use Certain Mirror Monitor Options As They Are Designed To Clip Over A Pre-Existing Mirror, Others Have A Stem For Adhering To Your Windscreen So Check Carefully When Ordering. Dashboard Monitors Adhere To Your Dashboard.

[COMPANY] Dolphin Automotive is a brand of UK Company Trading Direct Ltd, Est Since 1997 Supplying To The Trade & Retail. VAT Registered Supplier, 12 Months Warranty And Telephone Support.
