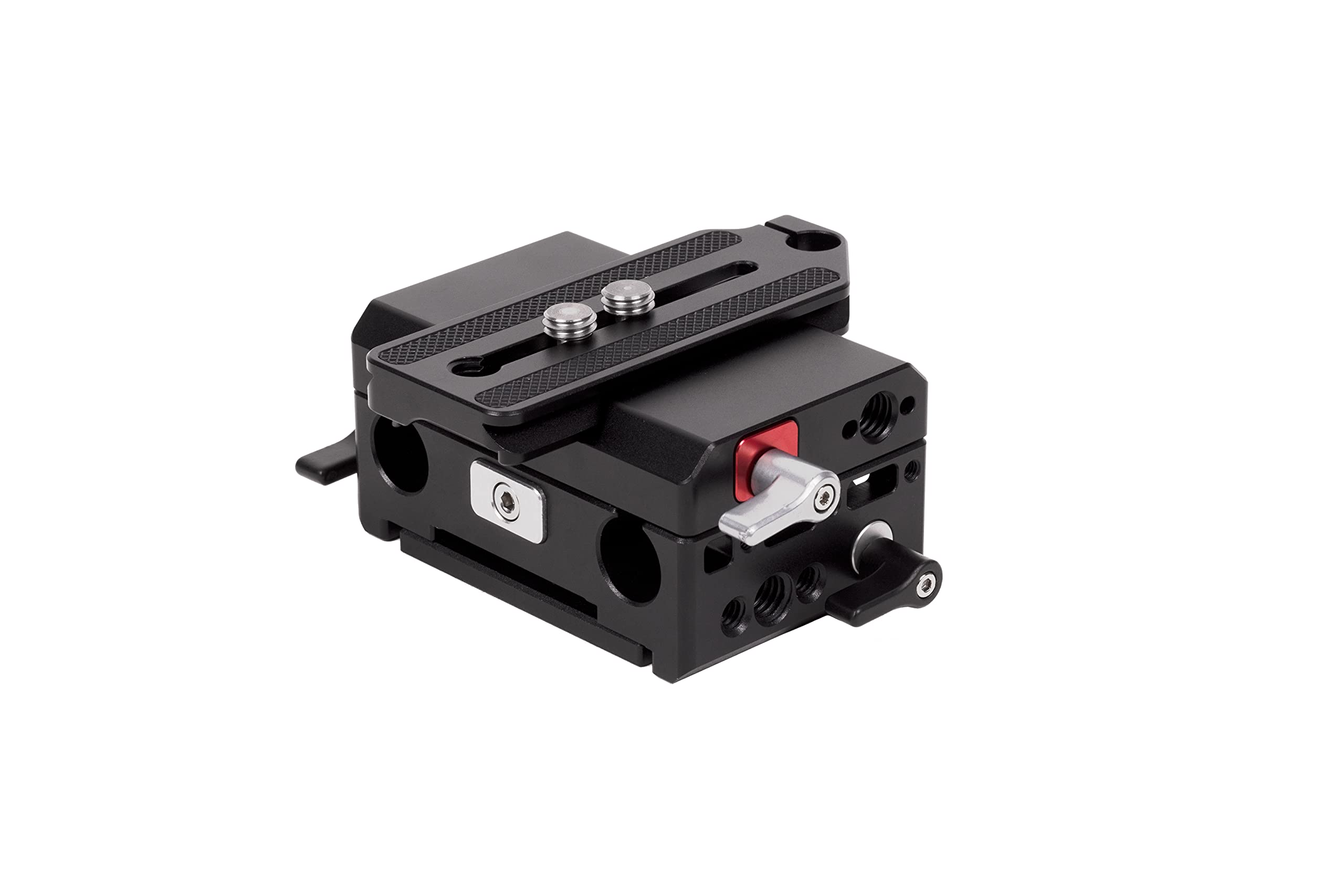

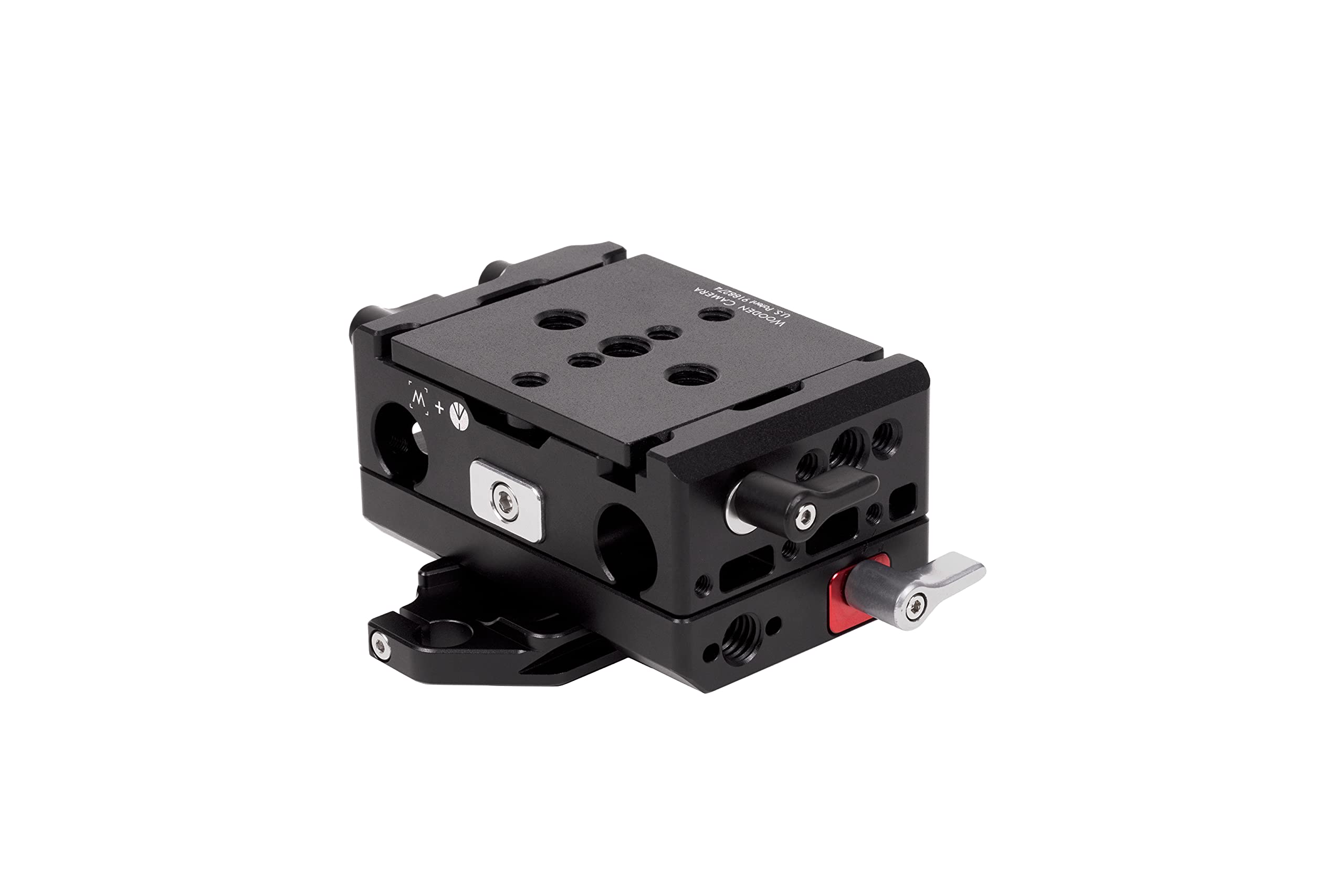

Wooden Camera LW 15mm Baseplate for Panasonic Lumix BGH1 - Quick Release ARCA Swiss Dovetail Plate | Perfect for Cinema Rig Setup & Professional Video Production

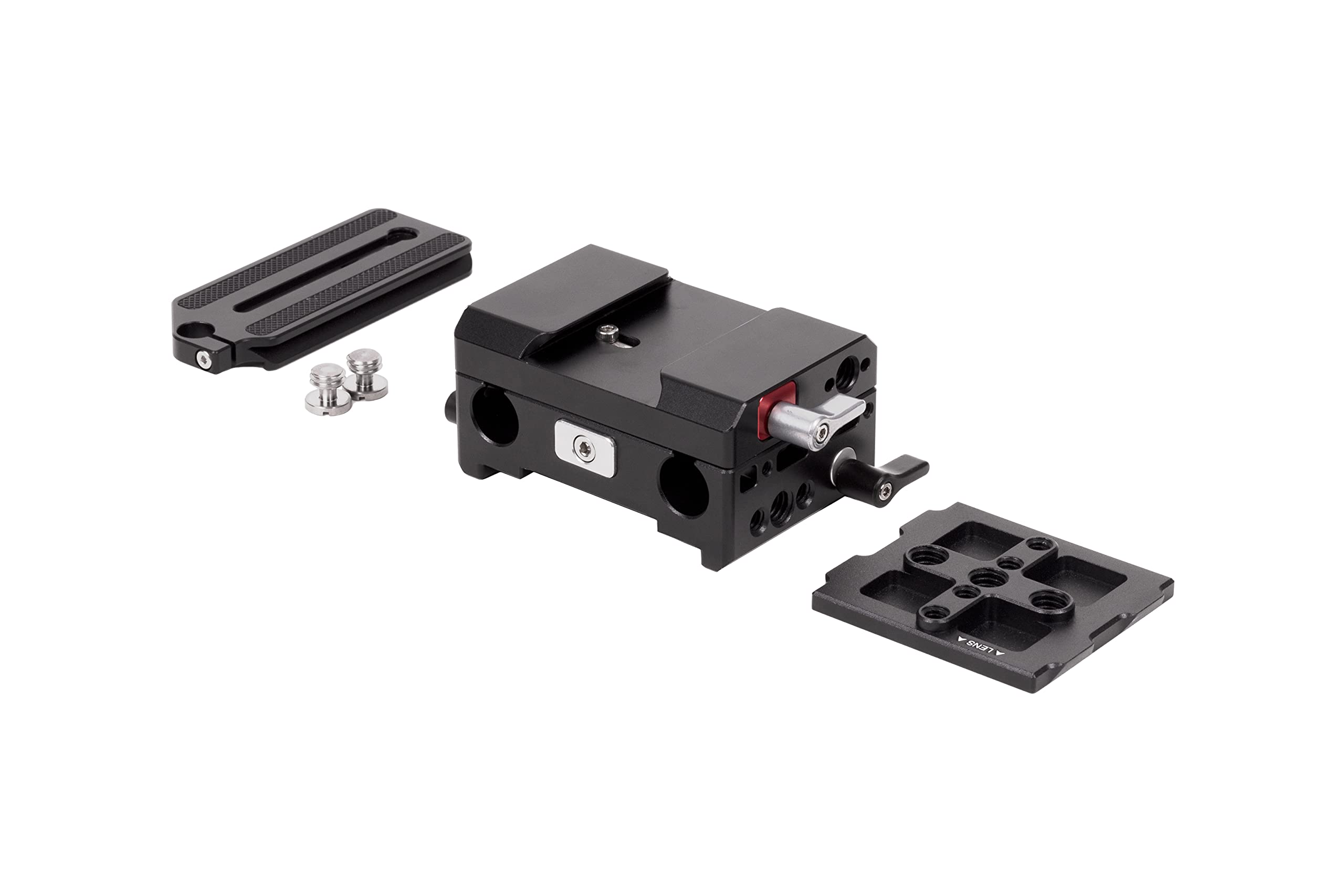

Quick release baseplate that provides lightweight 15mm rod support at the correct lens height. 15mm rods pass through front to back and have two locking thumb screws per side. The baseplate quick releases in two ways, giving the user the option to take the 15mm lightweight rods or to leave them behind. Baseplate features an upper ARCA Swiss standard dovetail with 3/8”-16 screw for attaching to the bottom of the camera. Upper ARCA Swiss standard dovetail slides into the LW 15mm Baseplate core, and includes a safety release button for removal. Also features a vertical lens support post system. Lower dovetail slot is ARRI standard for attaching to compatible ARRI dovetails or the included Quick Dovetail. Includes: 2x 3/8"-16 Low Profile Multi Screw, 2x 1/4"-20 Low Profile Multi Screw.. Specifications: Weight: 412g (0.9 lbs), Dimensions: 150 x 60 x 45 mm (5.9 x 2.3 x 1.7 in)

15mm Baseplate This quick release baseplate is a versatile mounting option for the Panasonic BGH1 camera and provides lightweight 15mm rod support at the correct lens height

Two Ways to Release The baseplate quick releases in two ways, giving the user the option to take the 15mm lightweight rods (not included) or to leave them behind

ARCA Swiss Dovetail Features an upper ARCA Swiss standard dovetail with 3/8-16 screw for attaching to the bottom of the camera. Dovetail slides into the LW 15mm Baseplate core, and includes a safety release button for removal

ARRI Standard Lower dovetail slot is ARRI standard for attaching to compatible ARRI dovetails or the included Quick Dovetail

Locking Levers Optional 15mm rods pass through front to back, with two rod-tightening thumb screws on either side of the baseplate
